OCM-II Data Download

In the 80s, there was an AI revolution in the electronics industry
The 90's electronics industry has once again witnessed a SMT mounting revolution

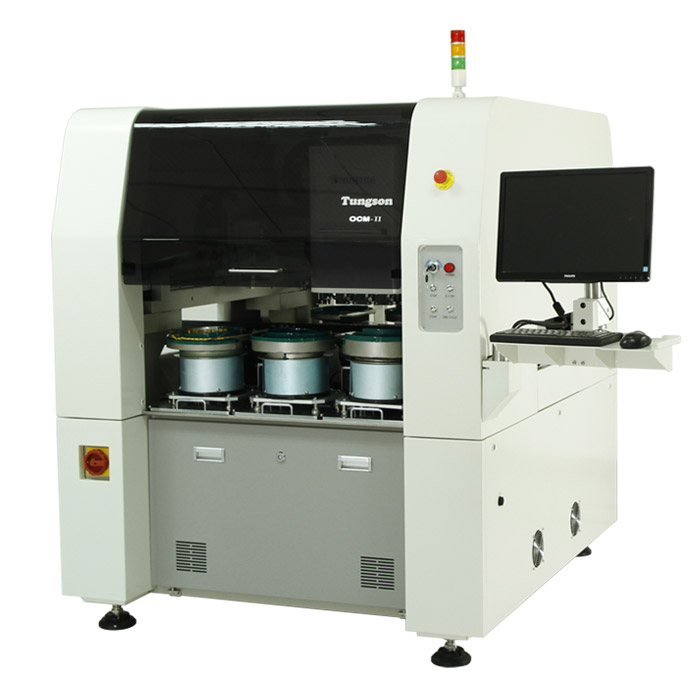

Today, the birth of Tungson OCM (Multi functional Irregular Component Plug in Machine)
Leading the new generation revolution in the electronics industry

1. Modular design, convenient and time-saving wire replacement, and improved efficiency 2. Accurate insertion and installation of components to ensure quality and reduce costs 3. Fundamentals of SMT machine software, human-machine intelligent operation interface 4. Preset various component information and flexibly call it from the component library 5. Embedded design of feeder, does not occupy external space 6. Data management to avoid human errors 7. Equipped with pressure sensing function, automatically identifying pins to improve the quality of actual insertion 8. Automatic identification of component polarity function to avoid component reverse insertion 9. IC pin forming function, saving secondary investment 10. Industry 4.0 mode with powerful software management and remote monitoring.

Remote operation and monitoring

Barcode automatic recognition system

Automatically check the PCB barcode when entering the board, identify the identity and eliminate the wrong board entering.

Hardware and software

Stable and reliable-Original imported screws, Panasonic servo motors and other main components.

modularization-The feeding device of Tungson OCM-II is easy, simple, and fast to replace, ◆ 　Replacing a set of feeder devices only takes 2 minutes ◆ Quick pull connector design, the nozzle or pneumatic finger can be replaced in just 20 seconds ◆ The feeder is equipped with a communication connection needle holder, which is plug and play ◆ The time for changing lines is 80% less than that of the same type of mechanical equipment ◆ Can be switched to bulk, strip, tube, and tray feeding stations ◆ Built in DC power supply system to prevent safety accidents caused by improper operation by personnel.

Central system-High precision pin alignment recognition and component shape analysis function, fully realizing precision insertion of irregular components.

Software- ◆ The CHP system can monitor various production conditions such as production cycle and efficiency in real time< br/> ◆ Automatic development of MT-6D system, integrated numerical control of 12 vibration source amplitude parameters< br/> ◆ The reference points and coordinates for PCB assembly are easy to copy, greatly reducing programming time< br/> ◆ Equipped with PCB bad board recognition function to avoid wasting component materials< br/> ◆ Offline programming (* 1) can be used to preset production line feeding configuration and insertion mode< br/> ◆ PPVC program simulation function, for checking the distribution and movement routes of plug-in devices.

Material retrieval tool

Suction-The suction nozzle is easy to fold and install, suitable for picking up various shaped components, especially when the machine is used for multiple purposes. The suction nozzle can be replaced quickly and the conversion efficiency is high.



Pneumatic finger-The pneumatic finger developed by Tungson is easy to disassemble and assemble, suitable for grasping various shaped components, with strong compatibility, stability and reliability.

Insertable materials

Multiple optional feeding systems

Production line combination reference

Note: * 1=optional items * 2=ongoing projects * 3=conditional limitations * 4=excluding signal tower lights, monitors, keyboard and mouse trays
